The toilet tank is a critical component of a toilet, responsible for storing water and regulating the flow of water into the bowl during flushing. Understanding the various parts of a toilet tank is essential for maintaining, troubleshooting, and repairing toilets. In this article, we will delve into the key components of a toilet tank, exploring their functions, importance, and relationships with other parts.
The toilet tank is typically located at the back of the toilet and is usually made of porcelain or ceramic materials. It is connected to the bowl by a series of pipes and valves, which work together to facilitate the flushing process. The tank is filled with water from the water supply line, and the water level is regulated by a float valve. As the water level rises, the float valve shuts off the water supply, preventing overflow.
Primary Components of a Toilet Tank

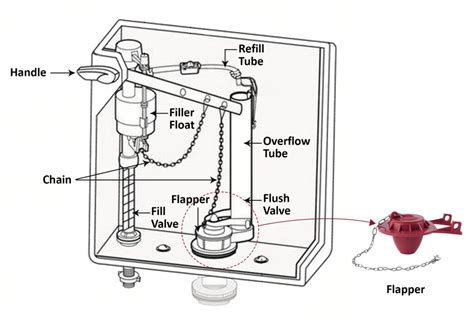

The primary components of a toilet tank include the fill valve, flush valve, overflow tube, and flapper. Each of these components plays a vital role in the proper functioning of the toilet.
The fill valve is responsible for filling the tank with water after each flush. It is usually located on the left side of the tank and is connected to the water supply line. The fill valve is designed to shut off the water supply when the tank is full, preventing overflow. Float valves are a type of fill valve that uses a floating arm to regulate the water level. As the water level rises, the float arm rises, shutting off the water supply.
Flush Valve and Overflow Tube
The flush valve is located at the bottom of the tank and is responsible for releasing water into the bowl during flushing. It is typically connected to a handle or button on the outside of the tank, which is activated by the user. The overflow tube is a safety feature that prevents the tank from overflowing in case the fill valve fails. It is usually located near the top of the tank and is designed to divert excess water into the bowl.The flapper is a rubber valve that covers the hole at the bottom of the tank, preventing water from flowing into the bowl until the toilet is flushed. When the toilet is flushed, the flapper lifts, allowing water to flow into the bowl. The flapper is an essential component of the toilet tank, as it helps to regulate the flow of water and prevent continuous flushing.
| Component | Function |
|---|---|
| Fill Valve | Fills the tank with water after each flush |
| Flush Valve | Releases water into the bowl during flushing |
| Overflow Tube | Prevents the tank from overflowing |
| Flapper | Regulates the flow of water into the bowl |
Key Points
- The toilet tank is a critical component of a toilet, responsible for storing water and regulating the flow of water into the bowl.
- The primary components of a toilet tank include the fill valve, flush valve, overflow tube, and flapper.
- The fill valve is responsible for filling the tank with water after each flush, while the flush valve releases water into the bowl during flushing.
- The overflow tube prevents the tank from overflowing in case the fill valve fails, and the flapper regulates the flow of water into the bowl.
- Understanding the functions and relationships between these components is essential for maintaining, troubleshooting, and repairing toilets.
Secondary Components of a Toilet Tank
In addition to the primary components, there are several secondary components that play important roles in the functioning of a toilet tank. These include the chain, lift wire, and tank-to-bowl gasket.
The chain is a metal or plastic link that connects the flapper to the flush handle. When the toilet is flushed, the chain lifts the flapper, allowing water to flow into the bowl. The lift wire is a thin metal rod that connects the flapper to the overflow tube, helping to lift the flapper during flushing. The tank-to-bowl gasket is a rubber seal that connects the tank to the bowl, preventing leaks and ensuring a tight seal.
Tank-to-Bowl Gasket and Chain
The tank-to-bowl gasket is an essential component of the toilet tank, as it helps to prevent leaks and ensure a tight seal between the tank and bowl. The chain, on the other hand, plays a critical role in lifting the flapper during flushing. If the chain is too long or too short, it can affect the proper functioning of the toilet.In conclusion, the toilet tank is a complex component of a toilet, comprising several primary and secondary components that work together to facilitate the flushing process. By understanding the functions and relationships between these components, you can maintain, troubleshoot, and repair toilets more efficiently, saving time and reducing costs.
What is the purpose of the fill valve in a toilet tank?
+The fill valve is responsible for filling the tank with water after each flush, regulating the water level and preventing overflow.
What is the function of the flapper in a toilet tank?
+The flapper is a rubber valve that covers the hole at the bottom of the tank, regulating the flow of water into the bowl and preventing continuous flushing.
How often should I inspect and maintain my toilet tank?
+It’s recommended to inspect and maintain your toilet tank every 6-12 months, depending on usage and water quality, to ensure proper functioning and prevent issues.
